400kN To 3000kN Sheet Metal Press Brake Hydraulic 3 Rollers Rolling Machine

  • 1
  • 2

Model Number : WC67Y

Pressure : 400kN - 3000kN

Thickness : 20mm to 40mm

Width : 2500mm to 8000mm

Upper roller diameter : 340mm to 600mm

Product : Sheet Metal Press Brake

Motor : 15kw

Place of Origin : China

Brand Name : Friendship Machinery

Certification : CE, ISO

MOQ : 1 SET

Price : Customized

Packaging Details : Wooden box, Standard Sea Packing

Delivery Time : 20 To 30 Working Days

Payment Terms : T/T, L/C

Supply Ability : 5-30 Sets Per Month

Contact Now

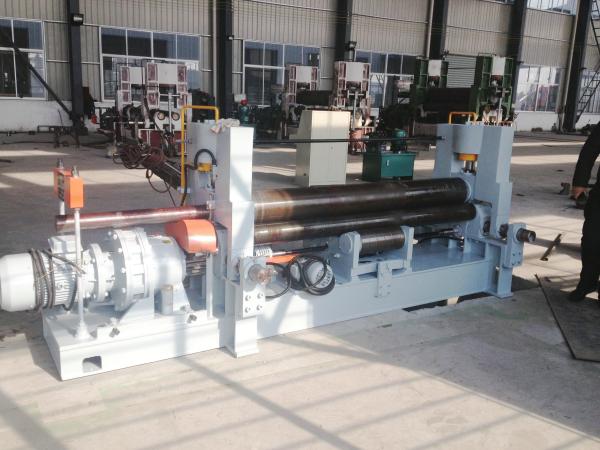

W11Y series hydraulic 3-rollers rolling machine

1. Introduction

This is 3 roller hydraulic symmetrical plate rolling machine, upper roller is in the center position over two bottom rollers, it vertical lifting up and down through hydraulic oil in cylinder acting on the piston. 2 bottom rollers are main driven rollers, they do rotation movement and supply torque of the device through the output gear box meshes with bottom roller gear. The structure of the device is compact, easy to operate and maintain.

2. Technical parameters

Model Thickness Width Upper roller diameter Bottom roller diameter Center distance Motor

Main

motor

Vice

motor
W11Y-20*2500 20mm 2500mm 340mm 260mm 430mm 15kw 7.5kw
W11Y-20*3000 20mm 3000mm 370mm 300mm 480mm 22kw 7.5kw
W11Y-20*4500 20mm 4500mm 420mm 240mm 550mm 22kw 7.5kw
W11Y-20*6000 20mm 6000mm 540mm 350mm 600mm 30kw 11kw
W11Y-20*8000 20mm 8000mm 600mm 390mm 750mm 37kw 15kw
W11Y-25*2500 25mm 2500mm 370mm 270mm 480mm 22kw 7.5kw
W11Y-25*3000 25mm 3000mm 420mm 360mm 550mm 30kw 11kw
W11Y-25*3500 25mm 3500mm 450mm 390mm 600mm 37kw 11kw
W11Y-30*2000 30mm 2000mm 380mm 300mm 480mm 22kw 7.5kw
W11Y-30*2500 30mm 2500mm 410mm 235mm 380mm 30kw 11kw
W11Y-30*3000 30mm 3000mm 450mm 390mm 600mm 37kw 11kw
W11Y-40*2500 40mm 2500mm 500mm 400mm 600mm 37kw 15kw
W11Y-40*3000 40mm 3000mm 540mm 4400mm 600mm 45kw 18.5kw
